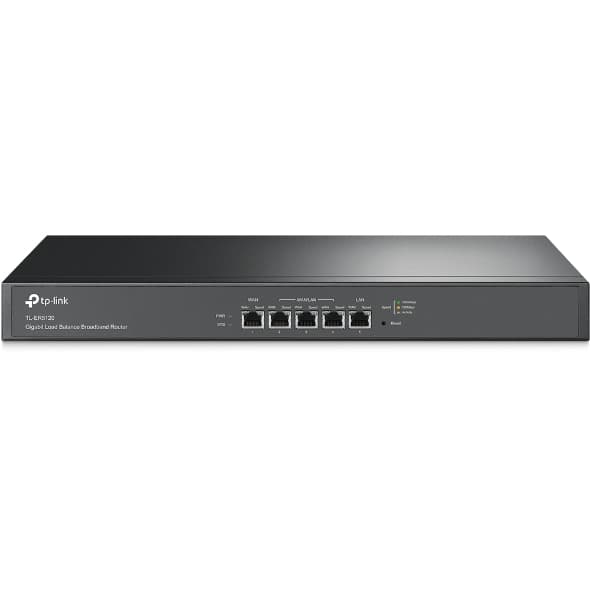

WIRELESS ROUTER TL ER5120 TP LINK

WIRELESS ROUTER TL ER5120 TP LINK

SECURITY

Access Control

Source/Destination IP Based Access Control

Filtering

MAC Filtering

URL/Keywords Filtering

ARP Inspection

Sending GARP Packets

ARP Scanning by WAN/LAN

IP-MAC Binding

Attack Defense

TCP/UDP/ICMP Flood Defense

Block TCP Scan (Stealth FIN/Xmas/Null)

Block Ping from WAN

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3, IEEE802.3u, IEEE802.3ab

TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, PPTP, L2TP

Interface

1 Gigabit WAN port

3 Gigabit LAN/WAN ports

1 Gigabit LAN port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button

Reset Button

Power Supply

Internal Universal Power Supply

AC100-240V~ 50/60Hz Input

Flash

32MB

DRAM

DDRIII 256MB

LED

PWR, SYS, Link/Act, Speed, WAN

Dimensions ( W x D x H )

17.3x7.1x1.7 in.(440x180x44 mm)

PERFORMANCE

Concurrent Session

150000

NAT(iMIX)

703Mbps

NAT(DHCP)

934Mbps

NAT(PPPoE)

868Mbps

BASIC FUNCTIONS

WAN Connection Type

Static/Dynamic IP,

PPPoE/Russian PPPoE,

PPTP/Russian PPTP,

L2TP/Russian L2TP,

Bigpond Cable

MAC Clone

Modify WAN MAC Address

DHCP

DHCP Server/Client

DHCP Address Reservation

IPv6

IPv6 Support

VLAN

802.1Q VLAN, Port VLAN

IPTV

Bridge, Custom

TRANSMISSION

Load Balance

Intelligent Load Balance

Link Backup (Timing, Failover)

Online Detection

NAT

One-to-One NAT

Multi-nets NAT

Virtual Server

Port Triggering

FTP/H.323/SIP/IPsec/PPTP ALG

UPnP

Routing

Static Routing

Policy Routing

Session Limit

IP-based Session Limit

Bandwidth Control

IP-based Bandwidth Control

AUTHENTICATION

Web Authentication

Local User Authentication,

Radius Sever Authentication,

Onekey Online

Management Features

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance

Web Management Interface

Remote Management

Export & Import Configuration

SNMP

Diagnostics(Ping & Traceroute)

NTP Synchronize

Syslog Support

OTHERS

Certification

CE, FCC, RoHS

Package Content

TL-ER5120

Power Cord

Rack-mount Kit

Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10

MAC OS, NetWare, UNIX or Linux

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
