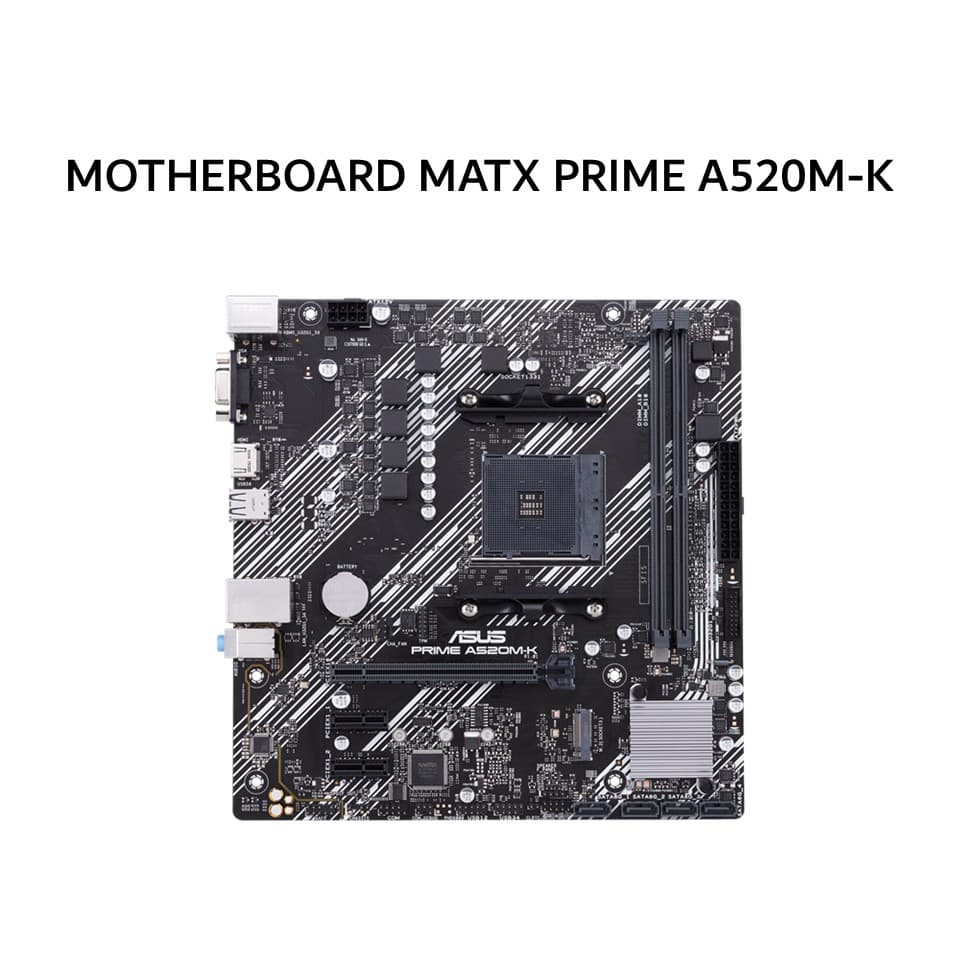

ASUS MOTHERBOARD MATX PRIME A520M-K AM4 /AMD 3Y

SPESIFIKASI

Brand: ASUS

Model: PRIME A520M-K

Color: Black

Chipset: AMD A520

CPU Support: AMD AM4 Socket for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series Desktop Processors

Memory: 2 x DIMM slots, Max. 64 GB DDR4

DDR4 5100(O.C) / 4866(O.C) / 4666(O.C) / 4600(O.C) / 4466(O.C) / 4400(O.C) / 4333(O.C) / 4266(O.C) / 4200(O.C) / 4133(O.C) / 4000(O.C) / 3866(O.C) / 3733(O.C) / 3600(O.C) / 3466(O.C) / 3400(O.C) / 3333(O.C) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133

Dual Channel Memory Architecture

ECC Memory support varies by CPU

Graphics Output:

1 x D-Sub

1 x HDMI 2.1 supports up to 4K at 60Hz

Expansion Slots:

1 x PCIe 3.0 x16 slot

2 x PCIe 3.0 x1 slots

Storage:

1 x M.2 Socket 3 with M Key supports PCIe 3.0 x4 and SATA modes

4 x SATA 6Gb per second ports

Supports RAID 0 1 and 10

LAN: Realtek RTL8111H 1Gb Ethernet with ASUS LANGuard

Audio: Realtek ALC887 or ALC897 7.1 Surround Sound High Definition Audio CODEC

Supports up to 24-Bit 192 kHz playback

USB Ports:

Rear USB:

4 x USB 3.2 Gen 1 Type-A

2 x USB 2.0 Type-A

Front USB:

2 x USB 3.2 Gen 1

4 x USB 2.0

Back Panel I O Ports:

4 x USB 3.2 Gen 1 Type-A

2 x USB 2.0

1 x PS 2 Keyboard Mouse Combo Port

1 x D-Sub

1 x HDMI

1 x LAN RJ45 Port

3 x Audio Jacks

Internal Connectors:

1 x CPU Fan Header

1 x Chassis Fan Header

1 x USB 3.2 Gen 1 Header

2 x USB 2.0 Headers

4 x SATA 6Gb per second Connectors

1 x M.2 Socket 3

1 x 24-pin ATX Power Connector

1 x 8-pin CPU Power Connector

1 x Front Panel Audio Connector

1 x Clear CMOS Jumper

Special Features:

ASUS 5X Protection III

DIGI+ VRM

ASUS LANGuard

SafeSlot Core

Stainless Steel Back I O

Aluminum Heatsink Design

BIOS: 256 Mb Flash ROM UEFI AMI BIOS

Operating System Support: Windows 10 64-bit
