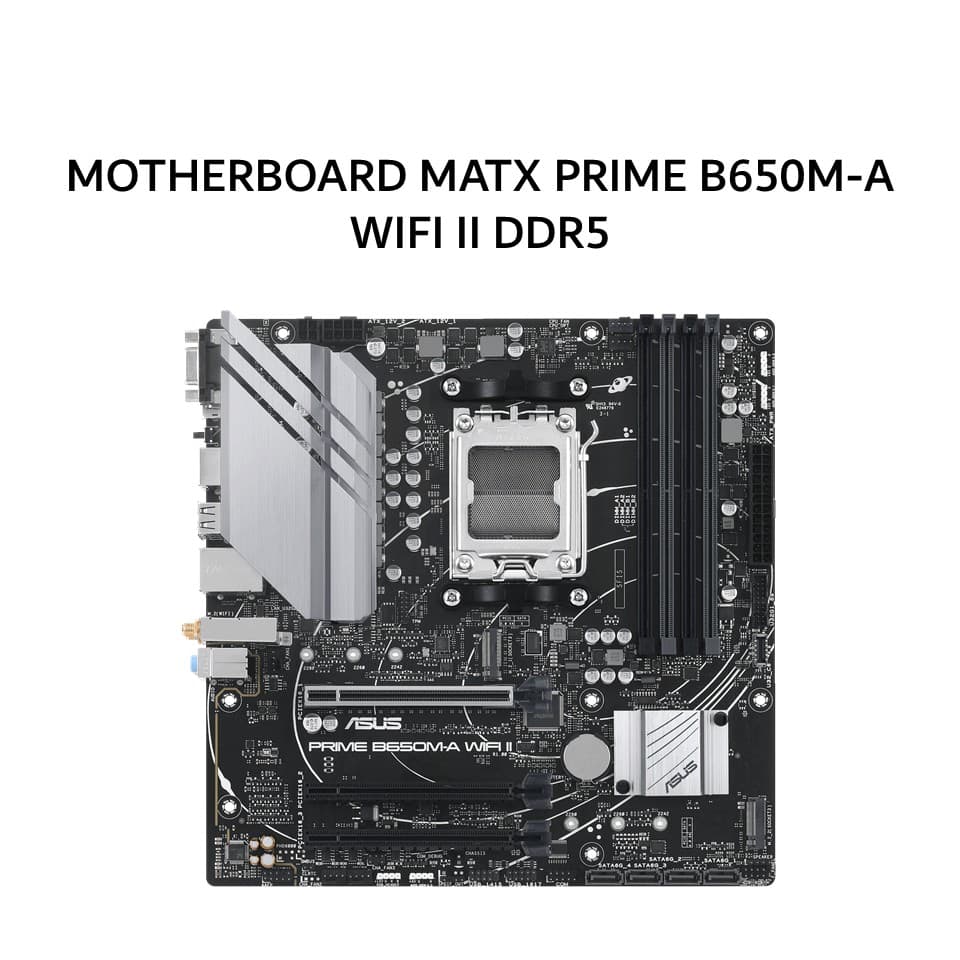

ASUS MOTHERBOARD MATX PRIME B650M-A WIFI II DDR5 AM5 /AMD 3Y

SPESIFIKASI

Brand: ASUS

Model: PRIME B650M-A WIFI II

Color: Black

Chipset: AMD B650

CPU Support: AMD Socket AM5 for AMD Ryzen™ 9000 Series, 8000 Series, and 7000 Series Desktop Processors

Memory: 4 x DIMM slots, Max. 192 GB DDR5

DDR5 7600+(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800

Dual Channel Memory Architecture

Supports AMD EXPO™

OptiMem II

Graphics Output:

1 x DisplayPort supports up to 8K at 60Hz

1 x VGA

1 x HDMI supports up to 4K at 60Hz

Expansion Slots:

1 x PCIe 4.0 x16 slot

2 x PCIe 4.0 slots support x1 mode

Storage:

2 x M.2 slots

M.2_1 supports PCIe 5.0 x4 or PCIe 4.0 x4 depending on CPU

M.2_2 supports PCIe 4.0 x4

4 x SATA 6Gb per second ports

Supports AMD RAIDXpert2 Technology

LAN: Realtek 2.5Gb Ethernet

Wireless Connectivity: Wi-Fi 6 2x2 802.11ax and Bluetooth 5.2

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports up to 24-Bit 192 kHz playback

USB Ports:

Rear USB:

2 x USB 3.2 Gen 2 Type-A

2 x USB 3.2 Gen 1 Type-A

4 x USB 2.0 Type-A

Front USB:

1 x USB 3.2 Gen 1 Type-C

2 x USB 3.2 Gen 1

4 x USB 2.0

Back Panel I O Ports:

2 x USB 3.2 Gen 2 Type-A

2 x USB 3.2 Gen 1 Type-A

4 x USB 2.0

1 x DisplayPort

1 x VGA

1 x HDMI

1 x Wi-Fi Module

1 x 2.5Gb Ethernet

3 x Audio Jacks

1 x BIOS FlashBack Button

1 x PS 2 Keyboard Mouse Combo Port

Internal Connectors:

1 x CPU Fan Header

1 x CPU OPT Fan Header

3 x Chassis Fan Headers

1 x USB 3.2 Gen 1 Type-C Connector

1 x USB 3.2 Gen 1 Header

2 x USB 2.0 Headers

2 x M.2 Slots

4 x SATA 6Gb per second Connectors

1 x 24-pin ATX Power Connector

1 x 8-pin plus 4-pin CPU Power Connector

1 x Front Panel Audio Connector

1 x Clear CMOS Header

1 x S PDIF Out Header

1 x SPI TPM Header

Special Features:

ASUS 5X Protection III

DIGI+ VRM

LANGuard

SafeSlot Core Plus

Stainless Steel Back I O

VRM Heatsink Design

BIOS FlashBack

BIOS: 256 Mb Flash ROM UEFI AMI BIOS

Operating System Support: Windows 11 64-bit Windows 10 64-bit
