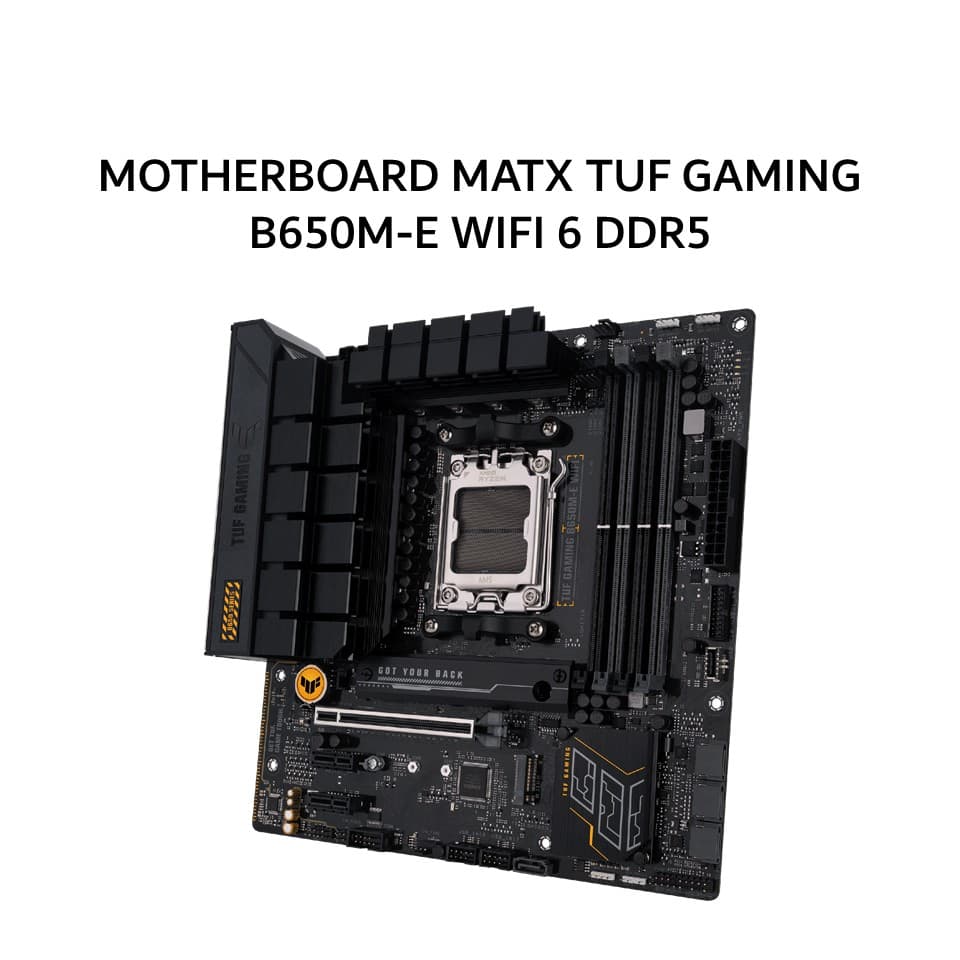

ASUS MOTHERBOARD MATX TUF GAMING B650M-E WIFI 6 DDR5 AM5 /AMD 3Y

SPESIFIKASI

Brand: ASUS

Model: TUF GAMING B650M-E WIFI

Color: Black

Chipset: AMD B650

CPU Support: AMD Socket AM5 for AMD Ryzen™ 9000 Series, 8000 Series, and 7000 Series Desktop Processors

Memory:

4 x DIMM slots, Max. 192 GB

DDR5 7600+(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800

Dual Channel Memory Architecture

Supports AMD EXPO™

OptiMem II

Graphics Output:

2 x DisplayPort

1 x HDMI

Supports up to 8K@60Hz via DisplayPort

Supports up to 4K@60Hz via HDMI

Expansion Slots:

1 x PCIe 4.0 x16 slot

2 x PCIe 4.0 x1 slots

Storage:

2 x M.2 slots

M.2_1 supports PCIe 5.0 x4

M.2_2 supports PCIe 4.0 x4

4 x SATA 6Gb/s ports

Supports AMD RAIDXpert2 Technology

Network:

Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless Connectivity:

Wi-Fi 6 802.11ax

Bluetooth 5.2

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports up to 24-Bit / 192 kHz playback

USB Ports:

Rear USB:

2 x USB 3.2 Gen 2

2 x USB 3.2 Gen 1

4 x USB 2.0

Front USB:

1 x USB 3.2 Gen 1 Type-C

2 x USB 3.2 Gen 1

4 x USB 2.0

Back Panel I O Ports:

2 x USB 3.2 Gen 2

2 x USB 3.2 Gen 1

4 x USB 2.0

2 x DisplayPort

1 x HDMI

1 x Wi-Fi Module

1 x 2.5Gb Ethernet

3 x Audio Jacks

1 x BIOS FlashBack Button

1 x PS 2 Keyboard Mouse Combo Port

Internal Connectors:

CPU Fan Header

CPU OPT Fan Header

AIO Pump Header

2 x Chassis Fan Headers

24-pin ATX Power Connector

8-pin + 4-pin CPU Power Connector

RGB Support:

3 x Addressable Gen 2 RGB Headers

1 x Aura RGB Header

Supports Aura Sync

Special Features:

ASUS TUF Protection

DIGI+ VRM

SafeSlot Core+

M.2 Heatsink

BIOS FlashBack

Q-LED

Pre-mounted I O Shield

Operating System Support:

Windows 11 64-bit

Windows 10 64-bit
