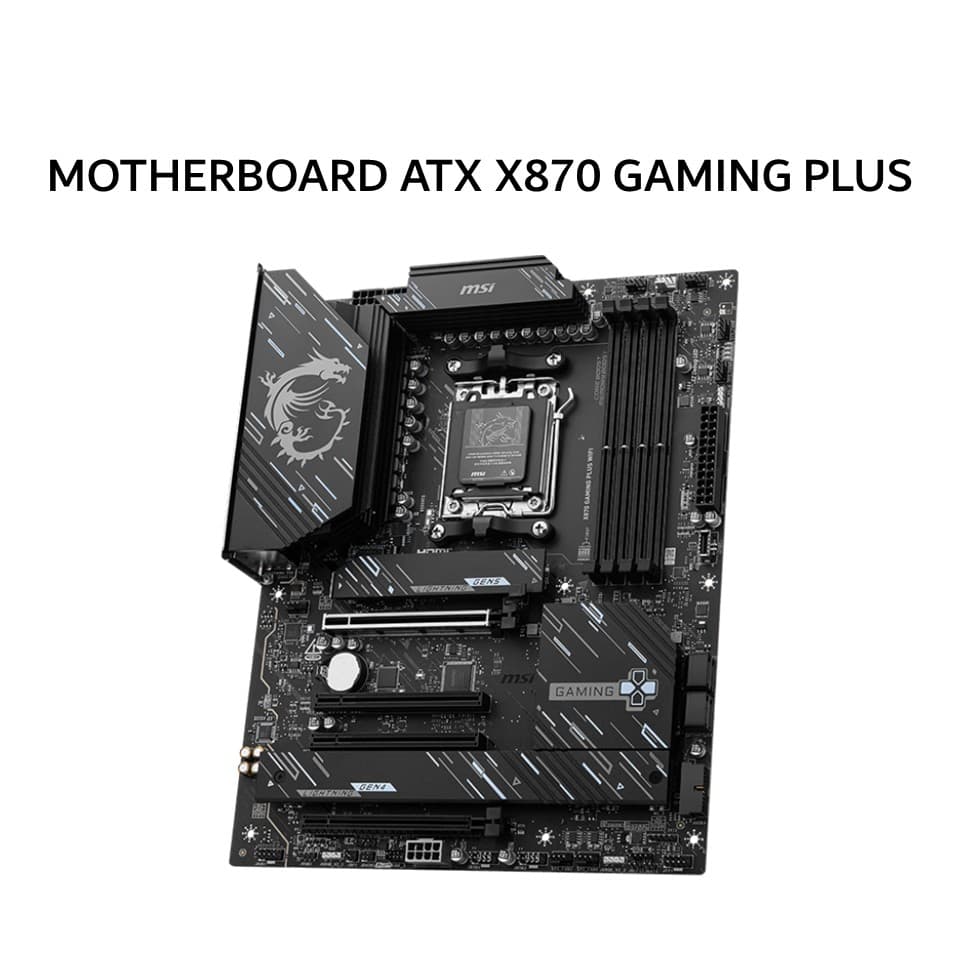

MSI MOTHERBOARD ATX X870 GAMING PLUS WIFI 7 DDR5 AM5 /AMD

SPESIFIKASI

Brand: MSI

Model: X870 GAMING PLUS WIFI

Chipset: AMD X870

CPU Socket: AM5

Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Memory: 4x DDR5 UDIMM, up to 256GB

Memory Support: DDR5 8200–5600 (OC) MT/s / 5600–4800 (JEDEC) MT/s

Memory Features: Dual Channel, Non-ECC, Un-buffered, AMD EXPO™, Memory Overclocking

Graphics Output:

1x HDMI™ 2.1 up to 4K 60Hz

1x USB Type-C DisplayPort (USB4®, DP 1.4) up to 4K 60Hz

Expansion Slots:

1x PCIe 5.0 x16

2x PCIe 3.0 x1

1x PCIe 4.0 x4

Audio: Realtek® ALC897, 7.1-Channel High Definition Audio

Storage:

3x M.2 Slots

1x M.2 PCIe 5.0 x4

1x M.2 PCIe 4.0 x4

1x M.2 PCIe 4.0 x2

4x SATA 6G

RAID Support: RAID 0 / RAID 1 / RAID 5 (M.2 NVMe)

LAN: Realtek® 8126VB 5G LAN

Wireless Connectivity: Wi-Fi 7, Bluetooth® 5.4

USB Ports:

8x USB 2.0

4x USB 5Gbps Type-A

2x USB 10Gbps Type-A

1x USB 10Gbps Type-C

1x USB 20Gbps Type-C

1x USB 40Gbps Type-C

Internal Connectors:

ATX Power Connector

CPU Power Connectors

PCIe Power Connector

CPU Fan Header

Pump Fan Header

System Fan Headers

RGB and ARGB Headers

Front Panel Connectors

TPM 2.0 Header

USB Headers

Back Panel Ports:

Clear CMOS Button

Flash BIOS Button

HDMI™

USB Type-A and Type-C Ports

5G LAN

Wi-Fi / Bluetooth Antennas

Audio Connectors

Operating System Support: Windows® 11 64-bit
